Our Product / XCMG Cement Pump Truck Used HB52 Schwing Concrete Pump Truck best selling
  • XCMG Cement Pump Truck Used HB52 Schwing Concrete Pump Truck best selling
  • XCMG Cement Pump Truck Used HB52 Schwing Concrete Pump Truck best selling
  • XCMG Cement Pump Truck Used HB52 Schwing Concrete Pump Truck best selling
  • XCMG Cement Pump Truck Used HB52 Schwing Concrete Pump Truck best selling
  • XCMG Cement Pump Truck Used HB52 Schwing Concrete Pump Truck best selling
  • XCMG Cement Pump Truck Used HB52 Schwing Concrete Pump Truck best selling

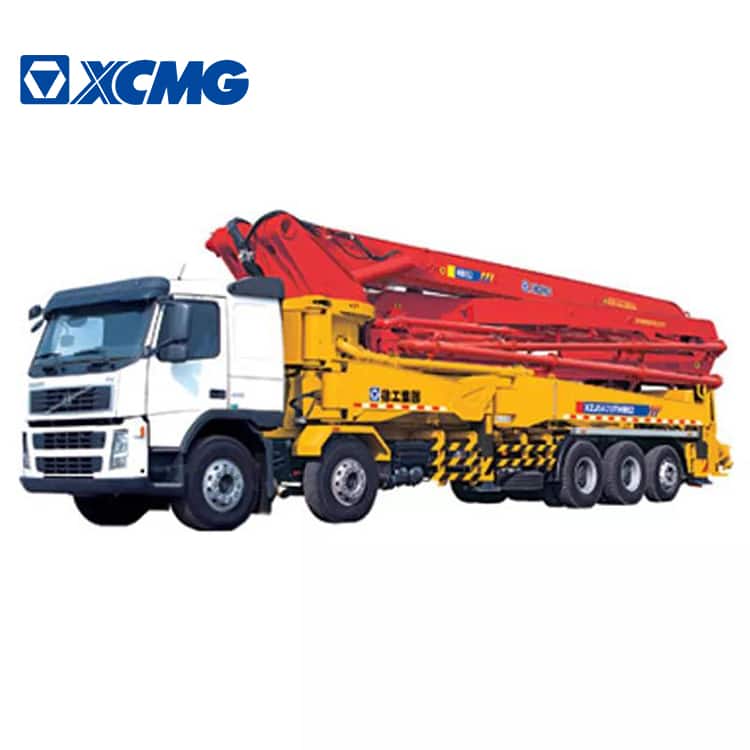

XCMG Cement Pump Truck Used HB52 Schwing Concrete Pump Truck best selling

  • Model:
    HB52
  • Warranty:
    One Year
CONTACT SELLER View Complete Details
GET LATEST PRICE Request a quote
Parameter
  • Certification:
    ISO9001
  • Model Number:
    HB52A
  • Brand Name:
    XCMG
  • Place of Origin:
    China
  • Dimension(L*W*H):
    13600×2500×4000
  • Weight:
    40870.000kg
  • Power(W):
    287000
  • Production Date:
    2011
  • Condition:
    Used
  • Moving Type:
    Wheel
  • Max.travel speed:
    89km/h
  • Max.grade ability:
    34%
  • Min.turning diameter:
    23.8m
  • Min.ground clearance:
    240mm
  • Fuel tank capacity:
    400L
  • Displancement:
    14.256L
  • Feeding height:
    1580mm
  • Water tank capacity:
    650L
  • Specification


    Brand


    XCMG


    Vehicle parameter

    Vehicle model


    HB52A-I

    Registed series#


    XZJ5413THB

    Dimension(L×W×H

    mm

    13600×2500×4000

    Total vehicle weight

    kg

    41000

    Pump System

    Theoretical throughput(high/low)

    m³/h

    90/150

    Delivery pressure(high/low)

    MPa

    13/8

    Strokes per minute

    times/min

    13/22

    Delivery cylinder diameter & stroke length

    mm

    260×2200

    Max.diameter of concrete aggregate

    mm

    ≤40

    Feeding height

    mm

    1580

    Concrete slump range

    cm

    12~23

    Hydraulic system


    close

    Hydraulic system oil pressure

    MPa

    35

    Hydraulic oil tank capacity

    L

    860

    Water tank capacity

    L

    650

    Max.pressure of water pump

    MPa

    2

    Placing boom & outrigger

    Vertical reach height

    m

    52

    Reach depth

    m

    36.4

    Horizontal reach radius

    m

    47.6

    Slewing circle

    °

    ±270

    chassis

    Output power

    Kw/(r/min)

    287/1800

    Max.torque

    N.m(r/min)

    1863/1100

    Displancement

    L

    14.256

    Max.travel speed

    Km/h

    89

    Max.grade ability

    %

    34

    Min.turning diameter

    m

    23.8

    Brake distance

    m

    ≤10/30km/h

    Wheel base

    mm

    1850+4605+1310

    Track(front rear)

    mm

    2065/1850

    Approach/departure angle

    °

    23.5/10

    Min.ground clearance

    mm

    240
