XCMG Factory Xqz152 Underground Coal Mining Machine Hydraulic Drilling Rig DTH Drills for Quarry

  • Warranty::
    1 Year
  • Certification::
    CE, RoHS, ISO 9001:2008
  • Condition::
    New
  • Drill Hole Diameter::
    100-150mm
  • Drill Hole Depth::
    35m
  • Drilling Way::
    Rotary
Video
CONTACT SELLER View Complete Details
GET LATEST PRICE Request a quote
Parameter
  • Model NO.:
    XQZ152
  • Rated Power/ Speed:
    264/2100kw
  • Fuel Tank Capacity:
    760L
  • Max. Tractive Force:
    50kn
  • Max. Feed Force:
    40kn
  • Transport Package:
    Comply with Export Packaging Requirements
  • Specification:
    11200*2700*3560mm
  • Trademark:
    XCMG
  • Origin:
    Xuzhou, Jiangsu, China
  • Production Capacity:
    10000 Units/Year
  • Product Description


    XCMG Factory XQZ152 Underground Coal Mining Machine Hydraulic Drilling Rig DTH Drills for Quarry

    DTH drilling rig is a medium-sized integrated down the hole drilling machine mainly developed for quarries, cement mines, open-pit mines and other mines, which can complete the driling construction of main blasting holes and pre splitting holes. It has the characteristics of large drilling diameter, high dilling efficiency, wide application range, etc. It is widely used in the production of building materials, coal, metallurgy, chemical and other mines, and is also the main equipment in the construction of geological, construction, hydropower, transportation and other engineering departments.

    Large engine room space, maintenance parts within reach, reserved passage for convenient maintenance.

    With the independent heat dissipation system, each system can independently switch fan speed, good environmental adaptability.

    High ground clearance, large traction, high and low speed switch, pendable track chassis, easy to transfer, strong mobility.

    Product Parameters
    ItemUnitXQZ152
    Hole range & depthDrilling diametermm115-152
    Max. hole depthm35
    Drilling pipesmmΦ102 (Φ89)*5000
    Number of pipes/6+1
    DTH hammer/5" (4")
    Engine Model/QSL8.9-C360-30/L9-360C
    Rated power/ speedkW264/2100
    Max. torqueN.m1500/1500
    Fuel tank capacityL760
    CompressorModel/Atlas Copco two-stage screw type
    FAD at normal working pressurem³/min19.5
    Max. workrg pressurebar20
    Compressor oilL70

    Hydraulic system
    Main pump Max. pull-down piston pushMPa25
    Main pumpL/min120+120
    Auxiliary pumpL/min70+40+40
    Hydraulic oil tank capacityL400
    Electrial systemVoltageV24V
    Batteries/2x12V, 180Ah
    Work lights, front/2x70 W
    Work lights, rear/1x70 W
    Work lights, feed/1x70 W
    Dust collectorFilter area28
    Number of filter elementspcs28
    FeedFeed mode/motor+chain
    Travel lengthmm5550
    Total lengthmm9567
    Max. tractive forcekN50
    Max. feed forcekN40
    Max. feed ratem/s0.9
    Rotary headMax. torquekNm4100
    Rotation speedrpm108
    UndercarriageMax. speedkm/h3
    Max. climbable gradient°25
    Track shoe widthmm350
    Overall widthmm2520
    Overall lengthmm3700
    Transport dimensionsmm11200*2700*3560
    Weight kg22000

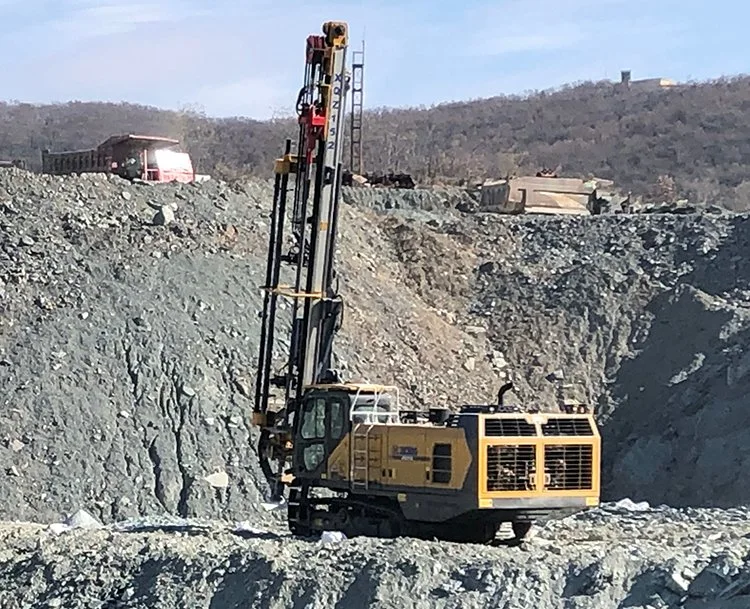

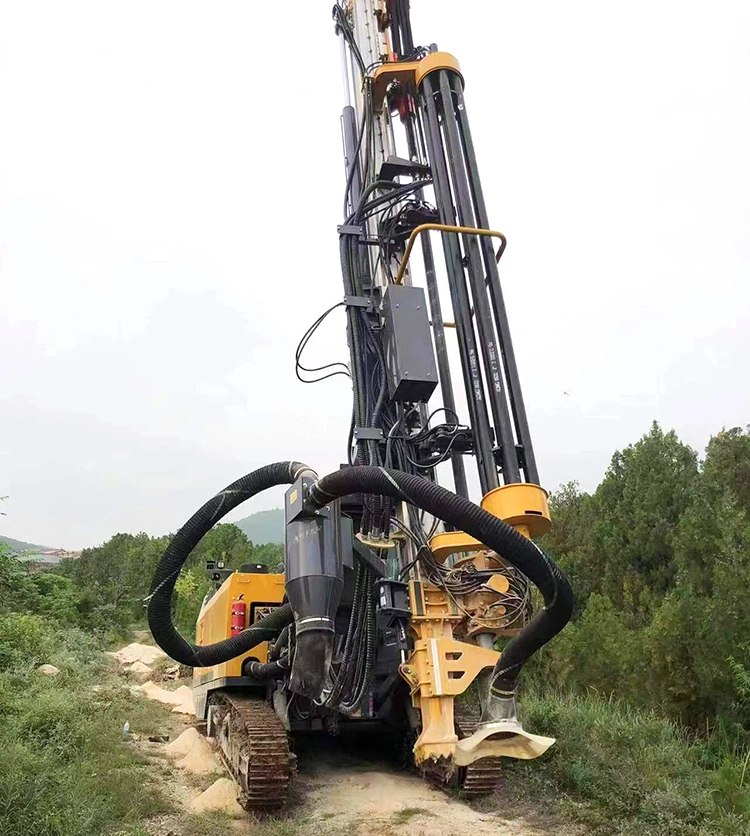

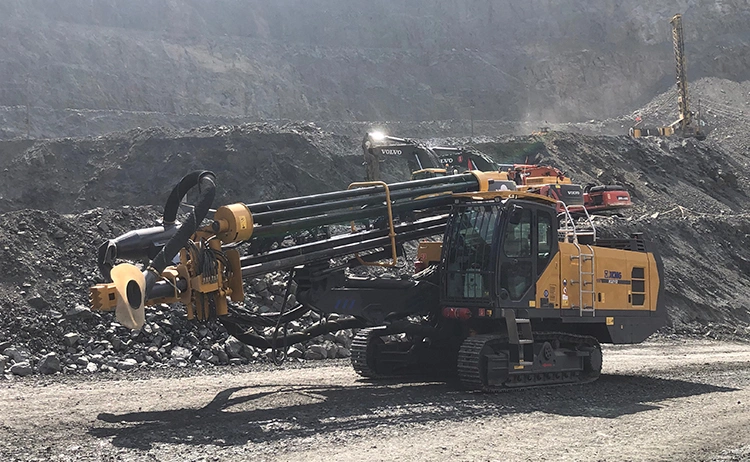

    Product Show
